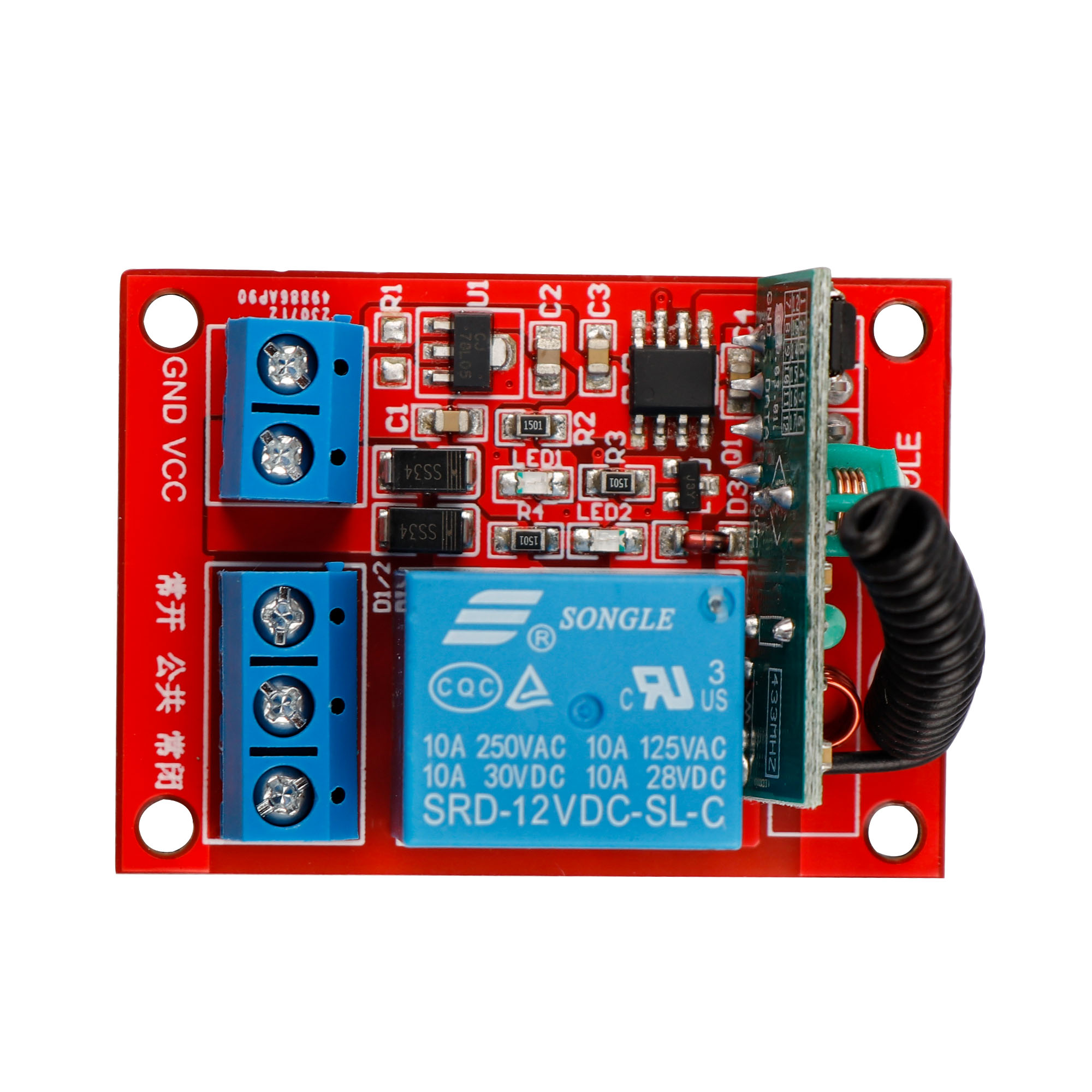

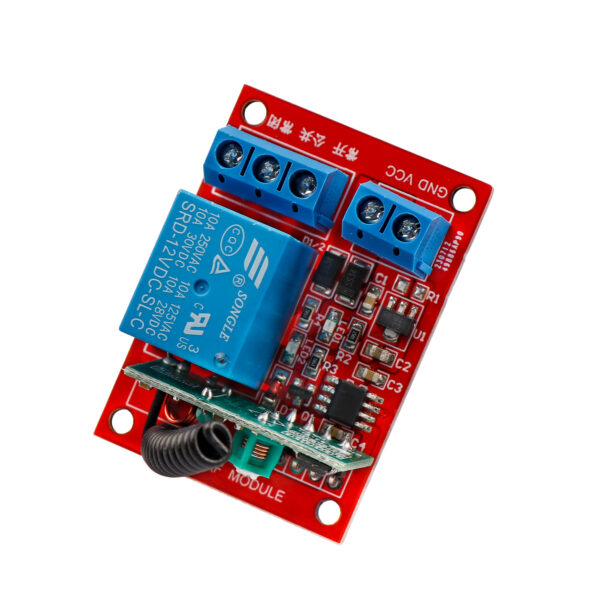

Radio frequency remote control.
1 Channel.
Relay control.
| Working woltage | DC5V/12V/24V |
|---|---|
| Chanel | 1 |
| Frequency | 433mHz/315mHz |
| Code | Fixed Code, Learning Code |
| Operation Temperature | -40 – +80℃ |
| Module Type: | RF remote module |
| Working voltage: | 11-12.5V DC |
| Working Current: | 40mA (Relay is closed) |
| Static working current: | 4mA (Relay is released) |
| Woking temperature: | -10~45℃ |
| Load: | 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A |
| Module Dimension: | 50mm*35mm*22mm |
| Remote Control Distance: | 15-100m ( Signal can be through walls) |
| Working Mode: | Support inching control, Self-lock control and interlock control as you like. |
